1  BiocBook versioning system

Important points
  • Any package built using the {BiocBook} package is itself a {BiocBook}-based package;
  • As such, it follows the release schedule from Bioconducor;
  • The pages/ folder contains a number of pages which are rendered as a website using Quarto;
  • The name of the branch (devel or RELEASE_X_Y) is crucial, as it is used to select a Bioconductor version to 1) build a Docker image for the {BiocBook}-based package and 2) render the BiocBook website.

1.1 Continuous Integration and Continuous Delivery

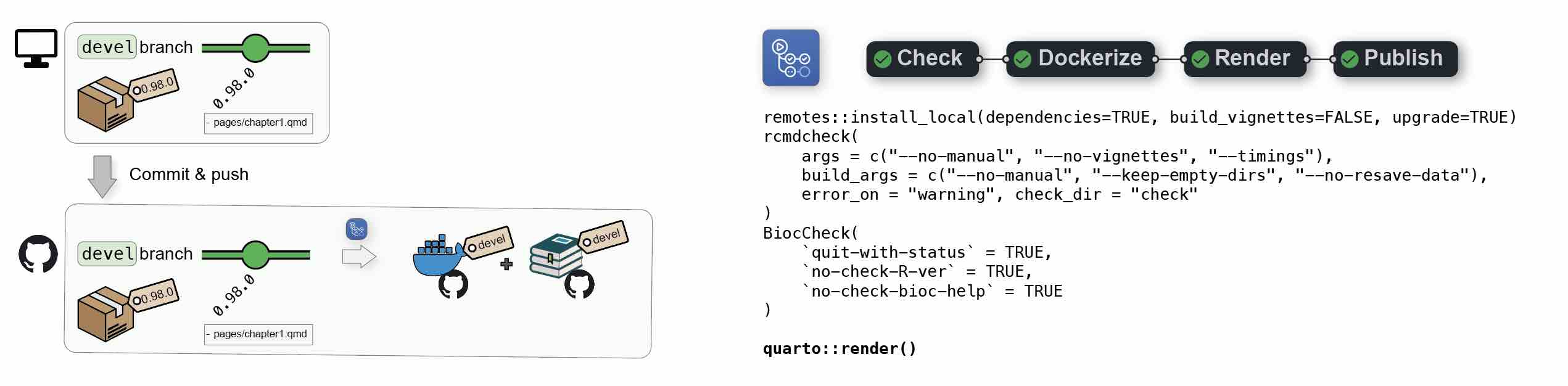

1.1.1 From local to Github

When pushing a {BiocBook}-based package from a local devel branch to Github, (e.g. when writing new articles), two jobs are automatically triggered from a single Github Actions workflow:

  1. First, a Docker image will be created to build the {BiocBook} package against the Bioconductor devel branch and push the resulting image to ghcr.io/<github_user>/<package_name>:devel;
  2. Then, this image will be used to render the BiocBook website and deploy it to https://<github_user>.github.io/<package_name>/devel/

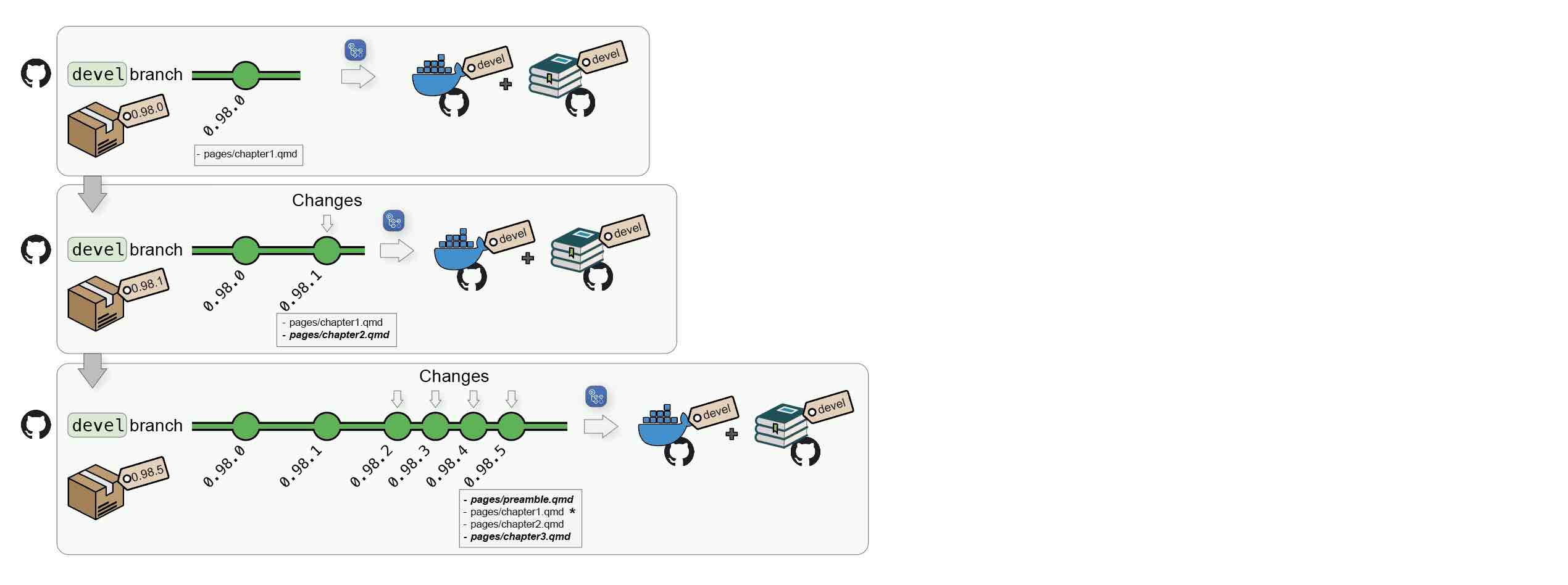

Additional commits on the devel branch will trigger regeneration of the devel Docker image and the online book devel version.

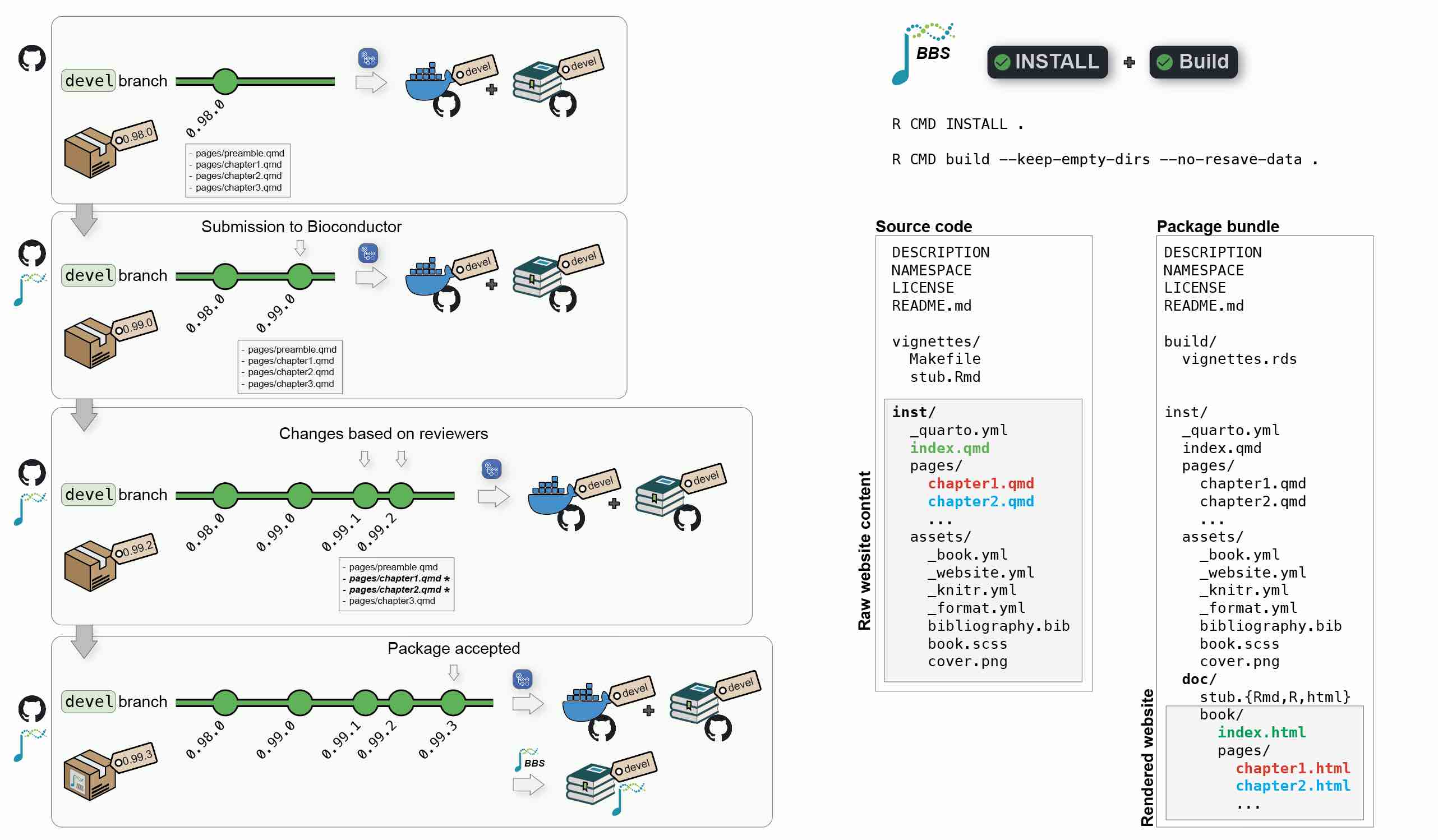

1.1.2 Package submission to Bioconductor

Submission to Biconductor can follow the same reviewing process as other standard packages.

  1. The author submits a book package to Bioconductor/Contributions;
  2. Once review starts, the package gets tested by Bioconductor’s Single Package Builder (SPB);
  3. The author pushes changes to its Github repository; this will update the devel Docker image and the online book devel version;
  4. Regularly, the author bumps versions and push to Bioconductor’s upstream branch to trigger a new SPB test run;

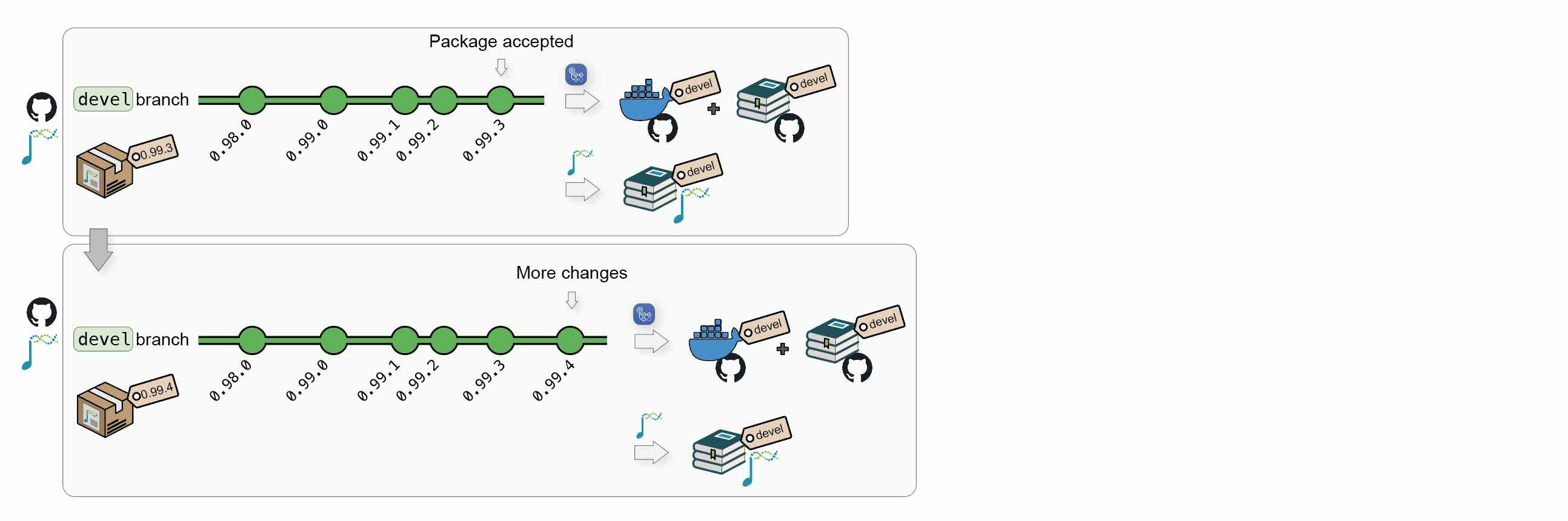

  5. Once the SPB returns no error/warnings, the package may be accepted;
  6. When a book package is accepted, it starts being regularly built by the Bioconductor Build System (BBS).
  7. The BBS build automatically renders the book and deploys it online.

At all time, the author’s local devel branch should be synchronized with its Github remote origin as well as the Bioconductor upstream remote.

  • Any commit pushed to the remote Github origin remote will trigger a new Github Actions workflow and regenerate the devel Docker image and the online book served by Github.
  • Any commit pushed to the remote Bioconductor upstream remote will result in a new build by the BBS and an update of the Bioconductor’s hosted book.

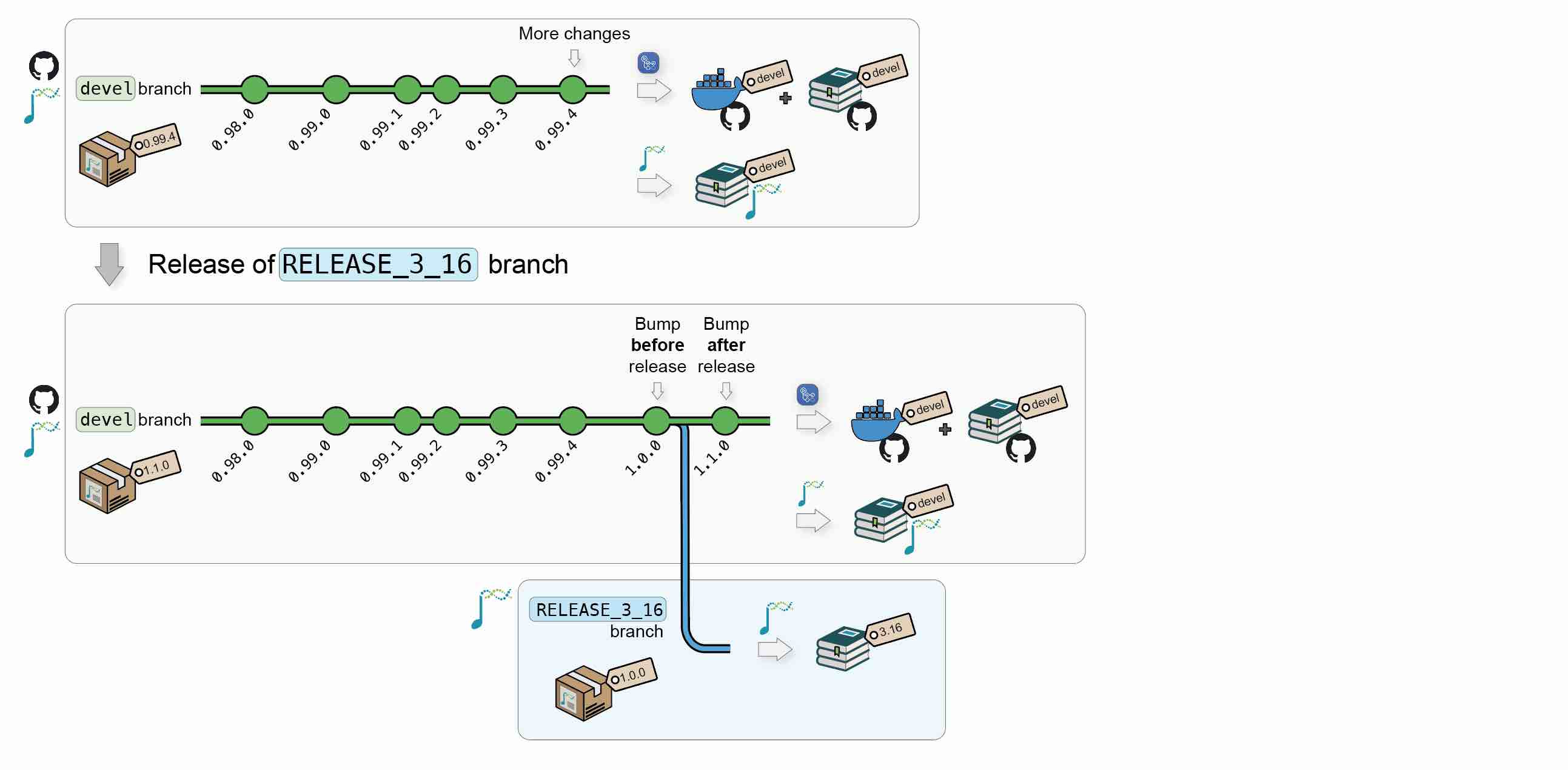

1.1.3 New Bioconductor releases

When Bioconductor releases a version X.Y, the core team will automatically create a new upstream:<package_name>@RELEASE_X_Y. This will automatically trigger new builds of the Bioconductor’s hosted book against the new release.

When this occurs, the upstream branch can also be pulled to origin:<package_name>@RELEASE_X_Y to:

  1. Create a Docker image @ ghcr.io/<github_user>/<package_name>:RELEASE_X_Y, with the book package installed using Bioconductor X.Y;
  2. Publish the book website to https://<github_user>.github.io/<package_name>/X.Y/, using packages from Bioconductor X.Y.


A {BiocBook}-based package can follow its own release life cycle if the autor does not intend to submit it to Bioconductor.

If the author of a {BiocBook}-based package intends to submit this package/book/website to Bioconductor, the Bioconductor submission and release life cycle:

  • When developing a {BiocBook}-based package (at the submission and during review), the package version should be between 0.99.0 and 1.0.0.
  • Once the submission is accepted and Bioconductor releases a new version X.Y, the {BiocBook}-based package version will automatically be bumped to 1.0.0 in Bioconductor release X.Y and to 1.1.0 in the continuing Bioconductor devel.

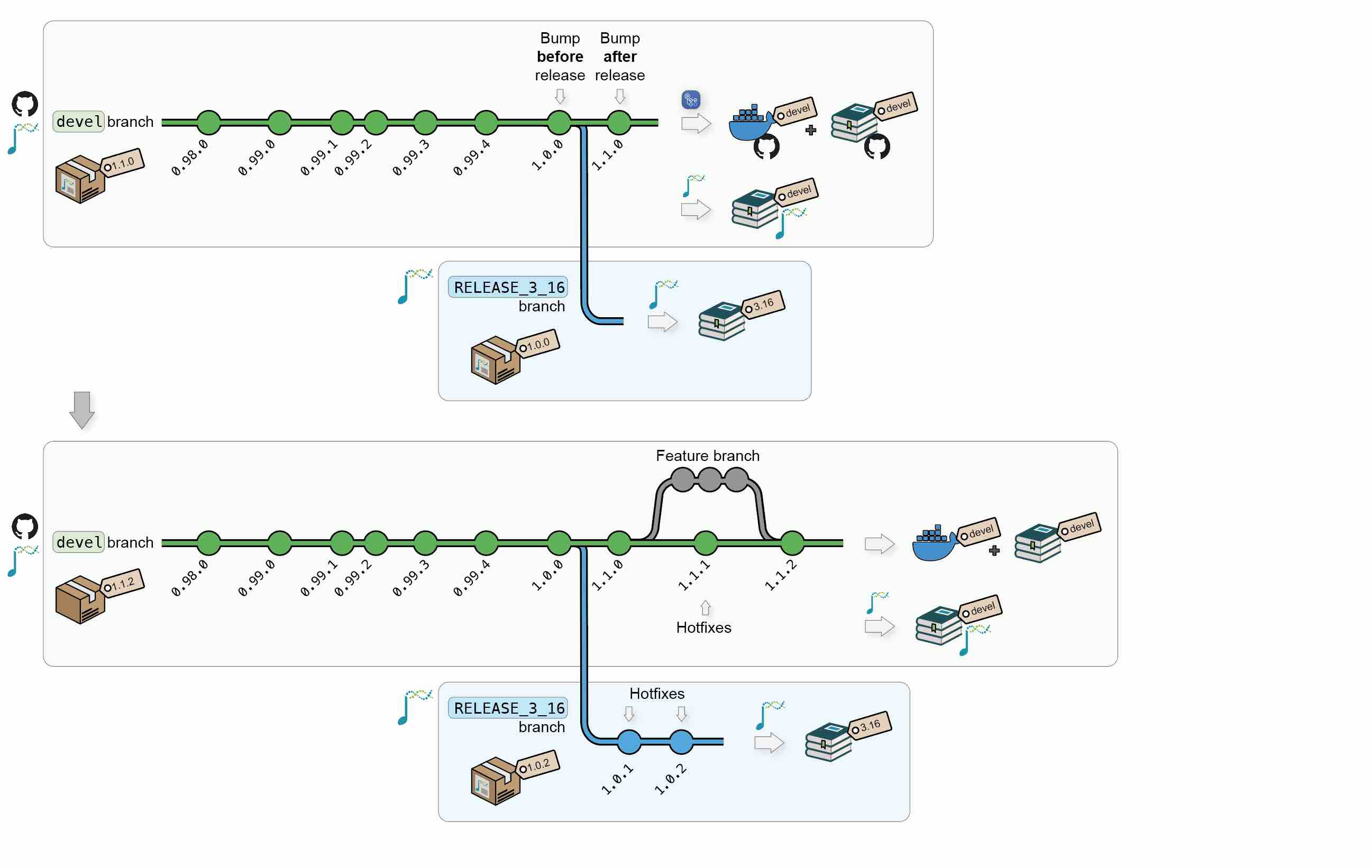

1.1.4 Updates

After new releases, updates and/or hot fixes can still made, both on the latest Bioconductor release and on the devel branch. New commits will automatically trigger the regeneration of the Docker image and the online book for the modified branch(es).

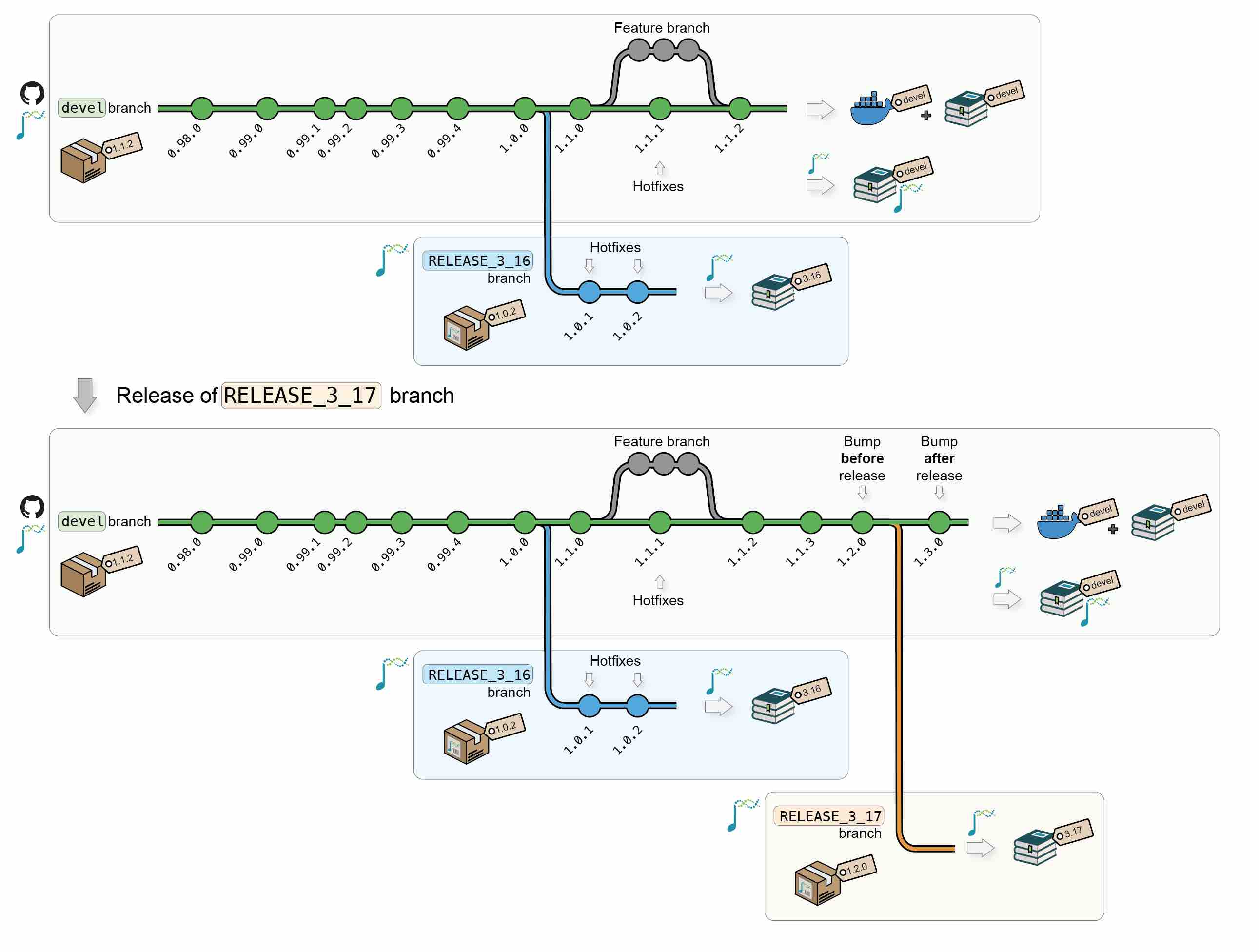

Additional Bioconductor releases will generate new versions of the Docker image and of the online book.

1.2 Access to versioned Docker and online book

1.2.1 Docker images versioning

The different versions of a BiocBook Docker image are availabed at the following URL:


For example, for this package ({BiocBookDemo}), the following Docker image versions are available:

1.2.2 Website versioning

The different versions of a BiocBook website are hosted at the following URL:


For example, for this package ({BiocBookDemo}), the following website versions are available:

1.3 Does this really work?

The BIOCONDUCTOR_DOCKER_VERSION variable is set in all Bioconductor Docker images. For instance, this version of the BiocBookDemo package online book relies on:

##  [1] ""

Note that this variable will always match the X.Y version returned by BiocVersion used to render the online book.

##  [1] '3.18.0'

1.4 So what packages can I use?

Any package that has been released in the Bioconductor version you are using (in this book version, this is 3.18.0).

The BiocBaseUtils package is available in Bioconductor since 3.16, while the BiocHail package was only made available in 3.17. CuratedAtlasQueryR has recently been accepted in 3.18 (current devel, on Wed Oct 25 07:02:30 2023). Let’s check this!

##  [1] '3.18.0'
##  [1] "BiocBaseUtils"
##  [1] "BiocHail"
##  [1] "CuratedAtlasQueryR"
